      產品概覽

                Product overview
















        您的位置：首頁>產品概覽>撇渣器>加長重型撇渣器 (EM0050)

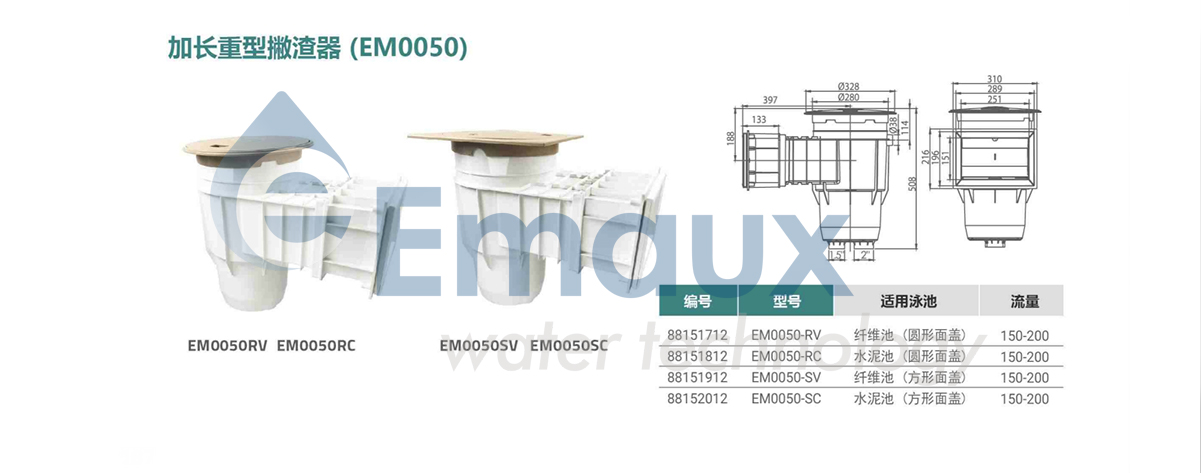

      加長重型撇渣器 (EM0050)


      加長重型撇渣器 (EM0050)


















      加長重型撇渣器 (EM0050)





















      •

                    產品單張

        •

      •

                    產品型號

        •





















                            搜索：











      EMAUX - Wide Mouth Wall Skimmer EM0050
      產品名稱
      Product   Name: EM0050 Wide Mouth Wall Skimmer (Concrete Pool & Vinyl Pool)
      產品編號
      Product   NO: 88151712、88151812、88151912、88152012
      系列號
      Series: EM0050-RV、EM0050-RC、EM0050-SV、EM0050-SC

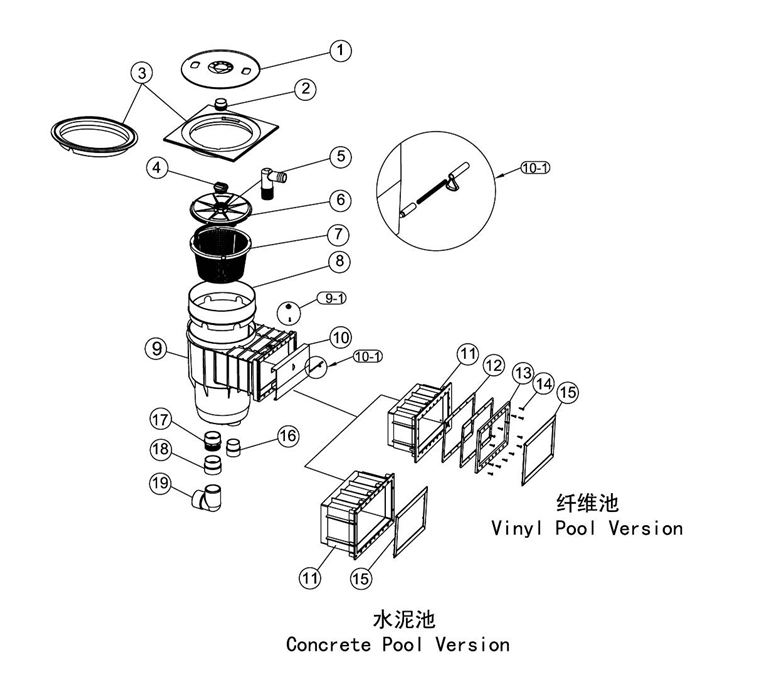

      項目部件編號 中文 數量
      Key  NO.Part NumberChinese QTY
      11211034圓環面蓋(EMAUX)1
      1211037圓環面蓋(空白)1
      21050009圓蓋牙套1
      31211035圓形定位蓋1
      1211036方形定位蓋1
      410510231.5"塞頭1
      51050007彎形軟管接頭1
      61051180內蓋1
      789150501過濾籃連手挽1
      81050004加高環1
      989150503A身1
      9-189150504擋塊與螺絲1
      1089150502浮動閥門(含泡棉)1
      10-189150505鎖緊銷扣連#316彈簧1
      111050023大型撇渣器加長件(寬)1
      1050032大型撇渣器加長件(窄)1
      122020021膠墊2
      131051184標準壓緊蓋1
      143011300平頭自攻螺絲14
      151051185遮丑蓋1
      1611700091.5"公制轉英制接頭1
      1711700072.0"帶牙接頭1
      1811700082.0"公制轉英制接頭1
      191170023彎形2.0"接頭1
